History

Raman Gupta 4a058503ca Change behavior of Z-Wave JS services (#52941 ) * Change behavior of Z-Wave JS services * pop parameters in for loop * Update logger message		2021-07-13 01:02:36 -04:00
..
docs
translations	[ci skip] Translation update	2021-07-13 00:13:03 +00:00
__init__.py	Create zwave_js node status sensor when the node is added (#51850 )	2021-06-14 19:31:44 +02:00
addon.py	Add zwave_js options flow to reconfigure server (#51840 )	2021-06-24 13:15:42 +02:00
api.py	Handle FailedCommand exceptions in zwave_js WS API (#52461 )	2021-07-13 00:13:43 -04:00
binary_sensor.py	Switch to using entity class attributes where possible in zwave_js (#51207 )	2021-06-01 10:26:22 +02:00
climate.py	Don't raise when setting HVAC mode without a mode ZwaveValue (#52444 )	2021-07-06 16:33:07 +02:00
config_flow.py	Add zwave_js options flow to reconfigure server (#51840 )	2021-06-24 13:15:42 +02:00
const.py	Initial support for zwave_js device conditions (#52003 )	2021-07-11 21:22:33 -07:00
cover.py	Switch to using entity class attributes where possible in zwave_js (#51207 )	2021-06-01 10:26:22 +02:00
device_condition.py	Initial support for zwave_js device conditions (#52003 )	2021-07-11 21:22:33 -07:00
discovery.py	Set zwave_js cover device_class for shutters and blinds (#50643 )	2021-05-16 08:26:16 +02:00
discovery_data_template.py	Fix no value error for heatit climate entities (#51392 )	2021-06-02 21:07:47 -07:00
entity.py	Mark entities for dead zwave_js nodes as unavailable (#48017 )	2021-07-03 22:06:07 -04:00
fan.py	Define AddEntitiesCallback type (#49812 )	2021-04-29 12:28:14 +02:00
helpers.py	Change behavior of Z-Wave JS services (#52941 )	2021-07-13 01:02:36 -04:00
light.py	Add transition support to zwave_js lights (#52160 )	2021-07-09 12:15:20 -04:00
lock.py	Migrate to async_get_current_platform everywhere (#50034 )	2021-05-03 09:34:28 -07:00
manifest.json	Bump zwave-js-server-python to 0.27.1 (#52885 )	2021-07-11 16:27:46 -04:00
migrate.py	Fix zwave_js migration logic (#52070 )	2021-06-21 16:45:47 -04:00
number.py	Allow None value return type for Number entity state value (#52302 )	2021-06-29 15:07:31 +02:00
README.md
sensor.py	Switch to using entity class attributes where possible in zwave_js (#51207 )	2021-06-01 10:26:22 +02:00
services.py	Change behavior of Z-Wave JS services (#52941 )	2021-07-13 01:02:36 -04:00
services.yaml	Add zwave_js ping node service (#51435 )	2021-06-14 16:38:35 -04:00
strings.json	Initial support for zwave_js device conditions (#52003 )	2021-07-11 21:22:33 -07:00
switch.py	Switch to using entity class attributes where possible in zwave_js (#51207 )	2021-06-01 10:26:22 +02:00

README.md

Z-Wave JS Architecture

This document describes the architecture of Z-Wave JS in Home Assistant and how the integration is connected all the way to the Z-Wave USB stick controller.

Architecture

Connection diagram

Z-Wave USB stick

Communicates with devices via the Z-Wave radio and stores device pairing.

Z-Wave JS

Represents the USB stick serial protocol as devices.

Z-Wave JS Server

Forward the state of Z-Wave JS over a WebSocket connection.

Z-Wave JS Server Python

Consumes the WebSocket connection and makes the Z-Wave JS state available in Python.

Z-Wave JS integration

Represents Z-Wave devices in Home Assistant and allows control.

Home Assistant

Best home automation platform in the world.

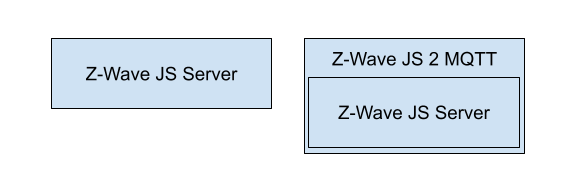

Running Z-Wave JS Server

Z-Wave JS Server can be run as a standalone Node app.

It can also run as part of Z-Wave JS 2 MQTT, which is also a standalone Node app.

Both apps are available as Home Assistant add-ons. There are also Docker containers etc.
